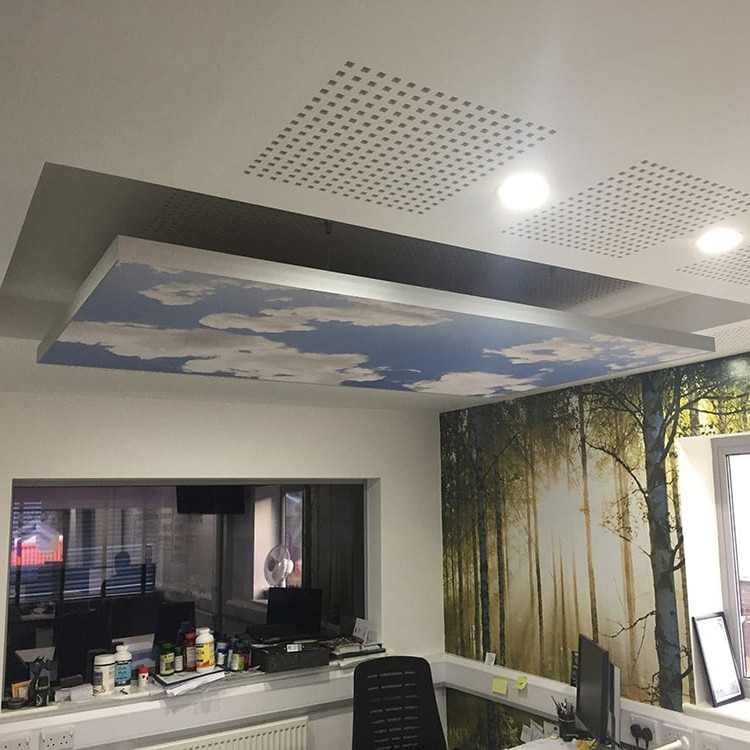

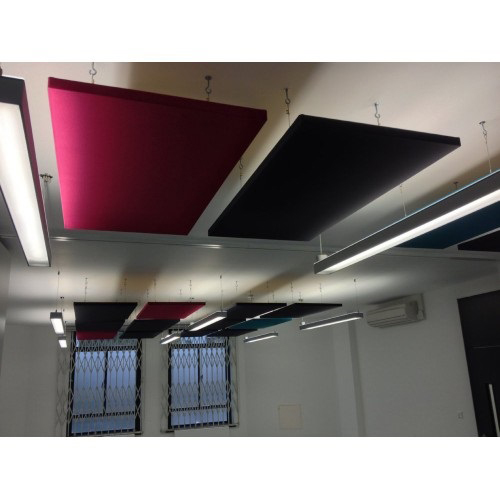

Mandi Acoustic Ceiling Cloud
Mandi Acoustic Ceiling Cloud allows you to horizontally suspend sound absorbing panels to reduce echo and reverberation.
These clouds come in 60 different colors, and 2 thicknesses.
Each cloud is wrapped with industry standard Mandi acoustic fabric acoustically transparent fabric.
Underneath the fabric is a high-density fiberglass acoustical core for maximum sound absorption. With a Class 1 fire-rating,
these panels will meet building code requirements for both public and private facilities.
Mandi Acoustic Ceiling Clouds are a quick and easy solution for a variety of applications including Offices, Conference Rooms,
Home Entertainment, Teleconferencing, Videoconferencing, Broadcast and Recording Studios, Restaurants and more.
These may be used in any space that needs a quick and effortless acoustical solution.
Features:
• Two thicknesses
• Mix and match sizes and colors
• Reduce reverberation and flutter echo
• Improves speech intelligibility
Mandi Acoustic Ceiling Cloud are available in the following standard sizes :
• 60cm x 60cm
• 60cm x 100cm
• 60cm x 120cm
• 120cm x 60cm
• 120cm x 120cm
• 140cm x 240cm
They can also be custom manufactured in any size up to a maximum of 140cm x 240cm
Technical Information for Mandi Acoustics Ceiling Cloud:
• Thickness: 30mm or 50mm
• Intended Use: Interior, sound absorption
• Fabric Finish: click here for our color chart
• Edge: Natural square edge
• Fire Rating: Class 1
• NRC: 0.85, 1.15
| SOUND ABSORPTION (HZ) |
| Thickness |
125Hz |
250Hz |
500Hz |
1KHz |
2KHz |
4KHz
|
Overall NRC
|
| 30 mm |
0.14 |
0.27 |
0.80 |
1.11 |
1.14 |
1.14
|
0.85
|
| 50 mm |
0.22 |
0.81 |
1.24 |
1.30 |
1.21 |
1.16
|
1.15
|
FOR MORE INFORMATION ON OUR MANDI ACOUSTIC CEILING CLOUD CALL US ON 087 510 7771 or Contact our sales team
